설명
휴대용 내시경 카메라 의료 영상 장비 이비인후과/복강경/자궁경/비뇨기과용 HD 내시경 카메라
사양:
| ITEM | Al-N122 |
| 카메라 | 1/2.8 /Inch Full HD SONY CMOS, 1/3 Inch SONY CMOS |
| Image Size | 1920x1080P/1305*977 |
| 프레임 속도 | (1920×1080)60fps |
| 스캐닝 시스템 | Progressive scanning |
| Pixels | 2,100,000픽셀 |
| 해상도 | 1080P |
| LED Light Source | 80W, Cold Light Source |
| 비디오 출력 | DVI, HDMI,CVBS |
| Minimum Illuminance | 0.5LUX | Color Temperature | 5100-7000K |
| Luminous Flux Value | ≥800lm | Color Rendering Index | ≥90 |
| Monitor | 22 INCH | AC Input | AC100-240V 50/60HZ |
| Video Recording | Build-In USB | 무게 | 9.85kg |
| White Balance | AWB & MWB | Dimension(mm) | 528*105*370 |
| Camera Control | WB & Photo Capture | SNR | 50dB, Tolerance 20% |
Package:

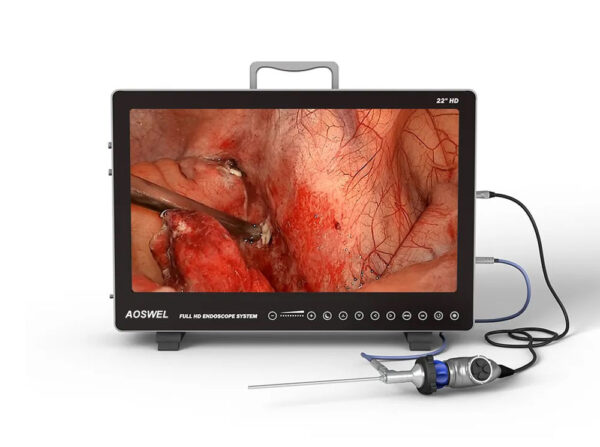

AL-N122 Portab Medical Endoscope video system center combines the LED light source, camera, monitor and the processor in one box, defining a new way of simplicity in the OR. The intuitive touch panel with buttons enables easy and fast control with no interruption of the procedure.
4 in 1 : Camera 2.1MPixels+ LED light source + monitor+ HD recorder.
Medical Grade HD Monitor : 22 Inch.
Built-in USB : FHD Imaging storage.
IPX8 Water Proof Camera: We always ensure high price performance.
Optional Extra Aluminum Crate : easy to carry and save shipping cost.
Easy to operate and functional : Including Operating room switching, white balance, hue, video, USB stick, noise reduction, brightness, sharpness, saturation, contrast, image gain, gamma settings, Zoom in/Out, screen freeze and flip, resolution, output frame rate, etc.
AOSWEL imaging systems could be used for all fields in Hospital and Clinics, such as arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, proctoscope, sigmoidoscope, urology resectoscope, plastic surgery endoscope, laparoscope, ductoscopy, breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope, APP hernia repair, lacrimal passage, minimally invasive varicose veins, etc.
The camera is applied for both rigid and flexible fiberscopes, sucn as Sinuscope, Otoscope, Laryngoscope, Cystoscope, Arthroscope, Spine endoscope, hysteroscope, laparoscope…
The camera is fit for both diganosis and surgeries.
The camera is applied for both rigid and flexible fiberscopes, sucn as Sinuscope, Otoscope, Laryngoscope, Cystoscope, Arthroscope, Spine endoscope, hysteroscope, laparoscope…
The camera is fit for both diganosis and surgeries.
